Gas Liquid Separator System

Gas Liquid Separator can separate impurities with high precision, coalesce and recover the separated materials, mainly used for processing the lubricating oil in the compressed air. The compressed air passes coalescing element in the separator, when the oil substances in gas pass through the layer of the filter element, they are first coalesced into larger oil droplets, which gradually fall to the bottom of the vessel under gravity, and the purified gas is discharged from the upper outlet. The effect of separator is good, the oil concentration could  be reduced down to 5 ppm, it is a gas filter with ultra-high efficiency.


Liquid (oil, water)separation from gas (mist eliminator) – it is used for removing liquid substances in gas, common application including power, hydrogen deoiling and dehydration in petrochemical industry, deoiling and dehydration for compressor, natural gas dehydration etc recovery treatment, the purity could reach up to 2 ppm after processing. This types coalescing filter is designed and manufactured according to the principles of collision, swirling, coalescence and sedimentation.

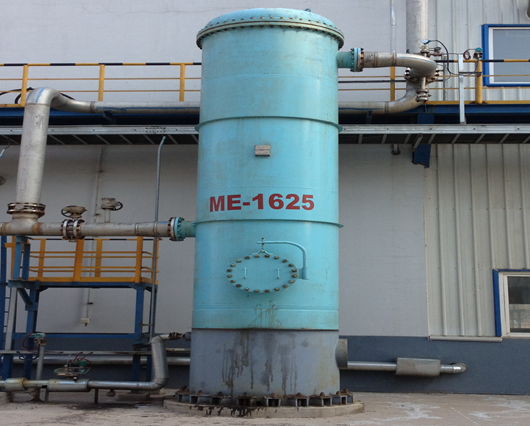

Gas Liquid Separator System(图1)
